Solid Power-DS- SPS50P12M2M4-S04040005 V1.0

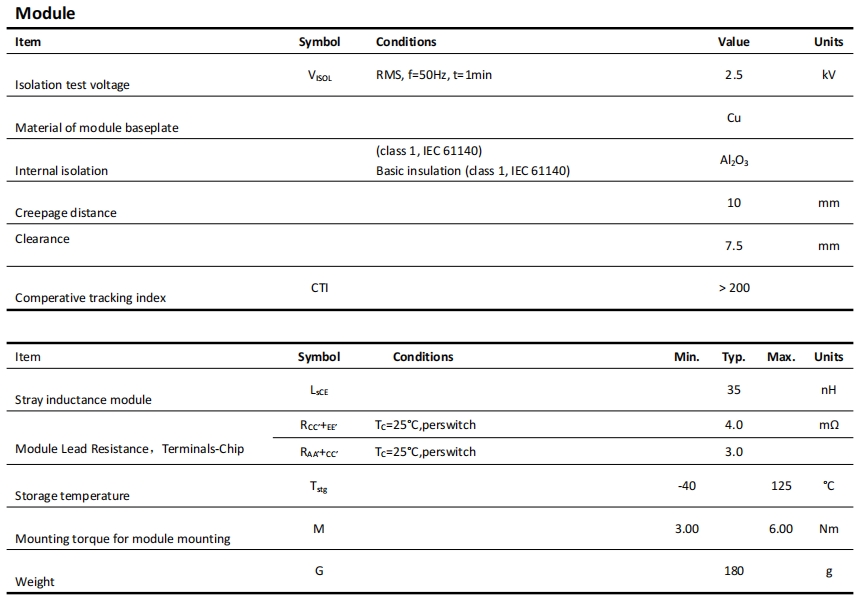

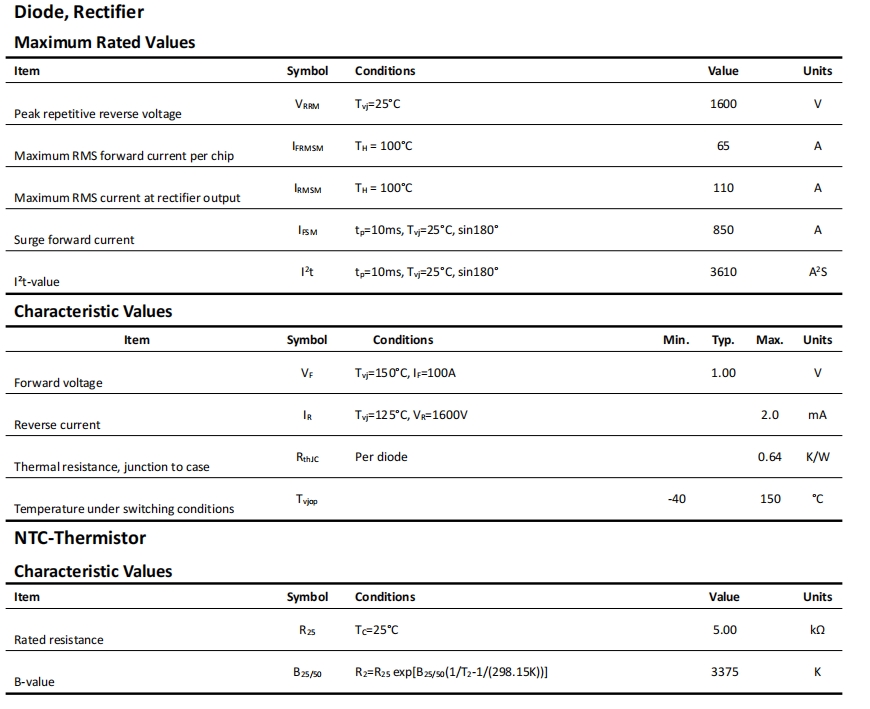

1200V 50A IGBT PIM Module
1200V 50A IGBT PIM
Features:
- 1200V Trench+ Field Stop technology
- Freewheeling diodes with fast and soft reverse recovery
- VCE(sat) with positive temperature coefficient
- Low switching losses
- Short circuit ruggedness
Typical Applications:
- Motor drives
- Servo drives

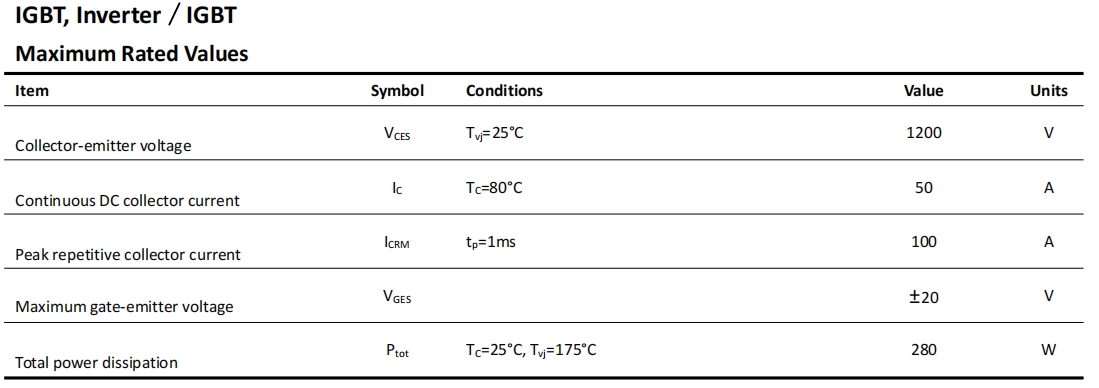

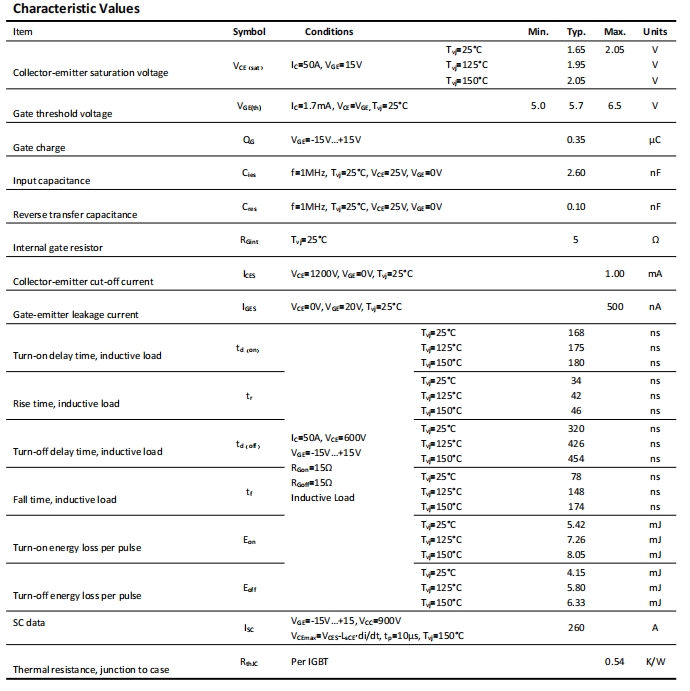

IGBT IGBT

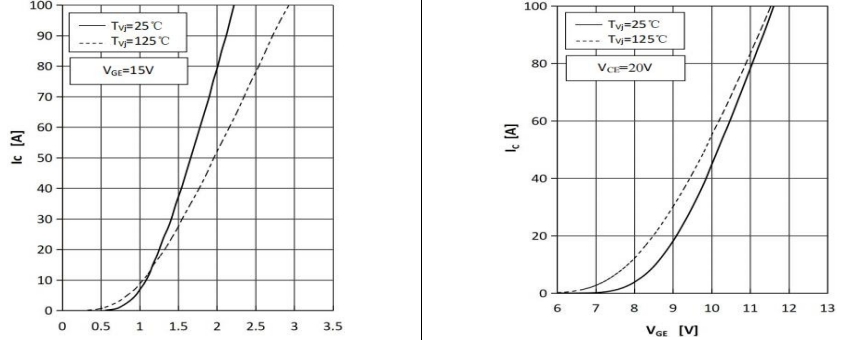

Output characteristic IGBT, Inverter (typical) Transfer characteristic IGBT, Inverter (typical)
IC=f (VCE) IC=f (VGE)
IGBT IGBT

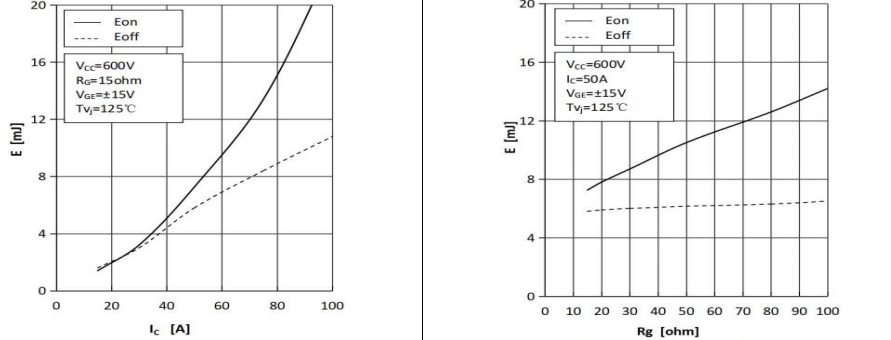

Switching losses IGBT, Inverter (typical) Switching losses IGBT, Inverter (typical)
E=f (IC) E=f (RG)

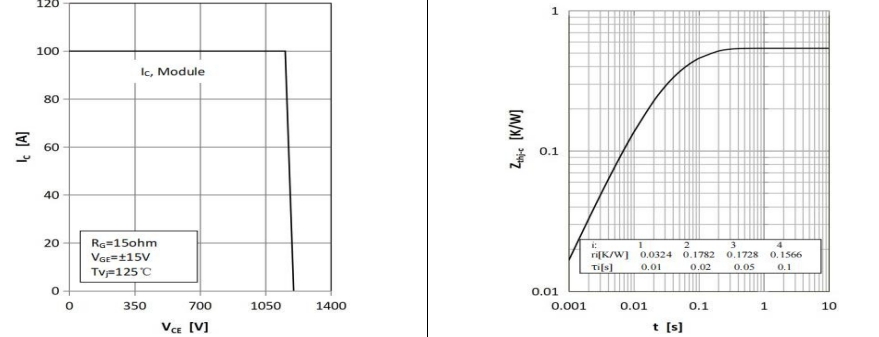

IGBT,RBSOA IGBT
Reverse bias safe operating area IGBT, Inverter (RBSOA) Transient thermal impedance IGBT, Inverter
IC=f (VCE) ZthJC=f (t)
FRD FRD

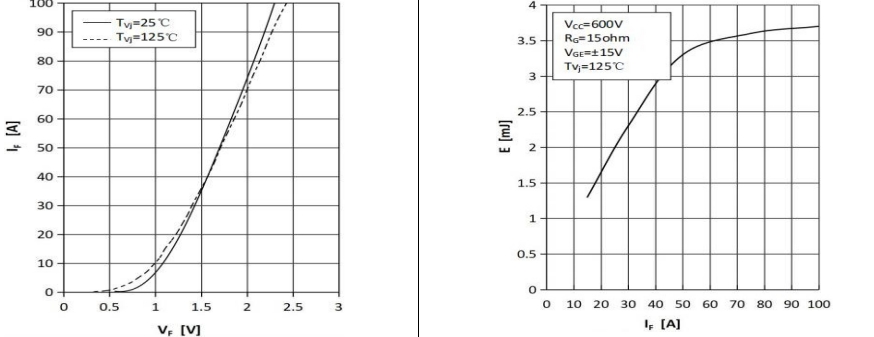

Output characteristic FRD, Inverter (typical) Switching losses FRD, Inverter (typical)
IF=f(VF) E=f (IF)
FRD FRD

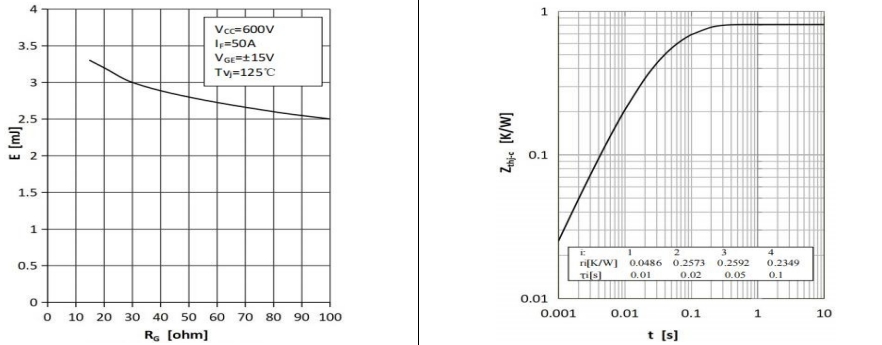

Switching losses FRD, Inverter (typical) Transient thermal impedance FRD, Inverter
E=f (RG) ZthJC=f (t)
IGBT FRD

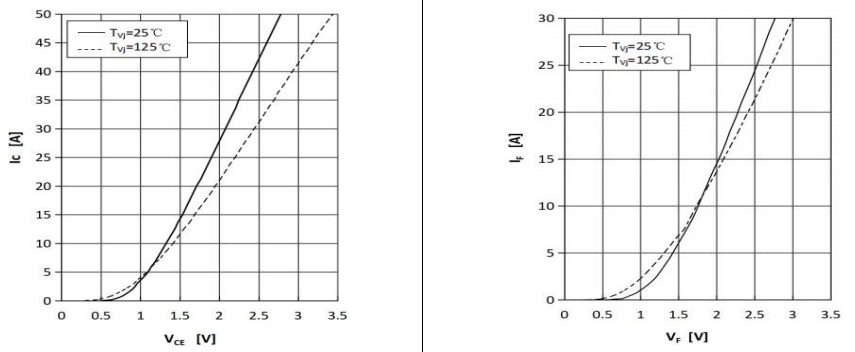

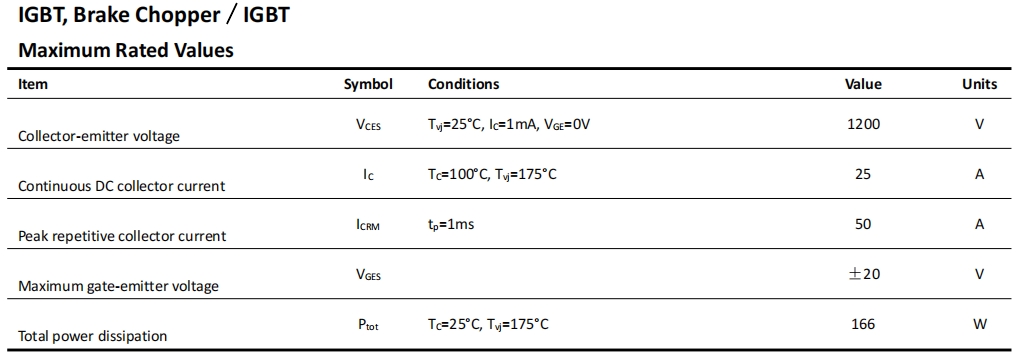

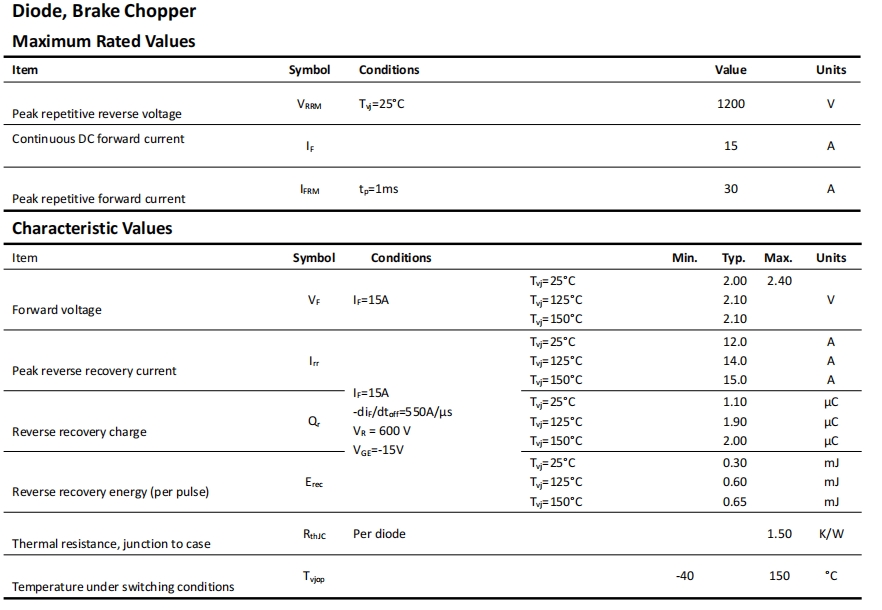

Output characteristic IGBT, Brake Chopper (typical) Forward characteristic of FRD, Brake Chopper (typical)
IC=f (VCE) IF=f (VF)
This is an IGBT Power Integrated Module (PIM) with a voltage rating of 1200V and a current rating of 50A. IGBT PIM modules are commonly used in various power electronic applications such as motor drives, inverters, and power supplies. The specifications indicate the module's ability to handle a maximum voltage of 1200V and a maximum current of 50A. Proper cooling and protection measures are essential for ensuring reliable and safe operation in high-power applications.

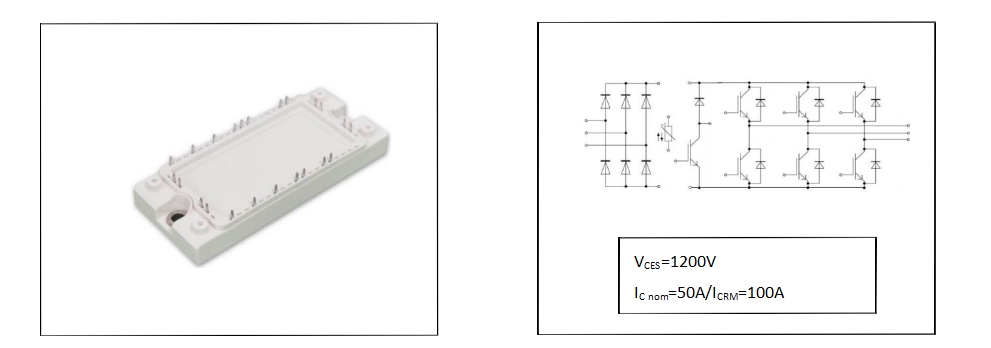

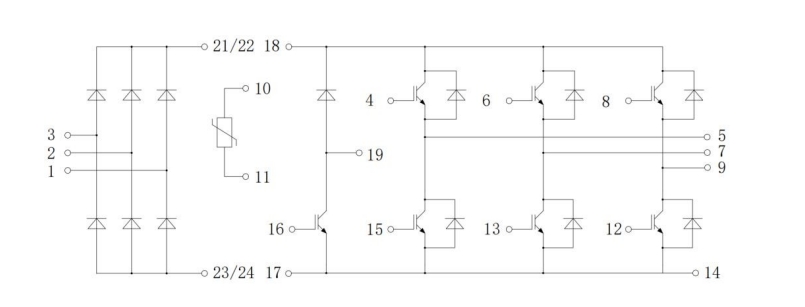

Circuit diagram headline

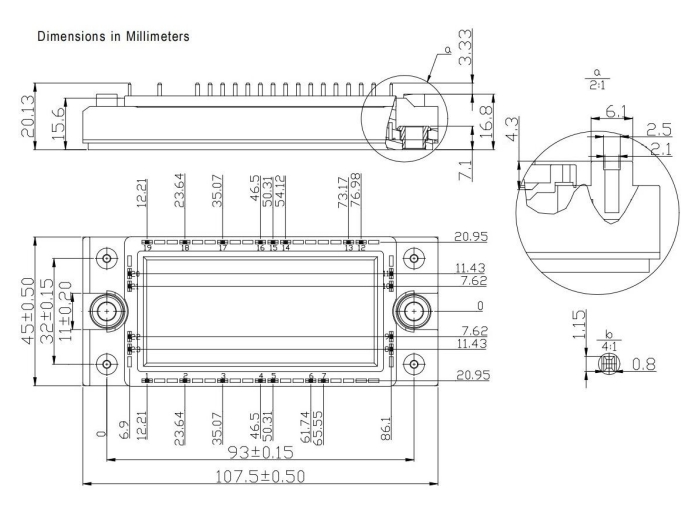

Package outlines
